Standard Process Flow of RO (Reverse Osmosis) Water Treatment Technology

With the acceleration of industrialization and urbanization, the protection and utilization of water resources have become a global challenge. Issues such as water pollution and water shortage are becoming increasingly severe, making efficient, energy-saving, and environmentally friendly water treatment technologies a research hotspot. Reverse osmosis technology, as an advanced membrane separation technology, has been widely applied in the field of water treatment due to its high efficiency, stability, and reliability.

Reverse osmosis technology originated in the early 20th century. With the continuous advancement of technology, its application scope has gradually expanded, and its technical level has also been continuously improved. Currently, reverse osmosis technology has become one of the main water treatment technologies in the fields of industrial pure water preparation, electronic ultrapure water production, and drinking purified water.

This article aims to explore the basic principles, equipment composition, and application fields of reverse osmosis technology. It introduces practical application cases in different fields and analyzes its advantages, disadvantages, and development trends. By gaining a deep understanding of reverse osmosis technology, we hope to provide readers with an efficient, energy-saving, and environmentally friendly water treatment solution, contributing to the protection and utilization of water resources.

In the following chapters, we will gradually unveil the mystery of reverse osmosis technology, revealing its unique charm and vast prospects in various fields. Let us look forward together to the surprises and hopes that this technology brings for creating a better living environment for humanity.

Reverse osmosis, also known as reverse permeation, is a precise membrane-based liquid separation technology, with its core driving force being the pressure difference. Through this technology, solvents can be effectively separated from solutions, forming a contrast with the direction of natural permeation, hence the name reverse osmosis.

The working principle of reverse osmosis primarily relies on the difference in osmotic pressure between different materials. When the applied operating pressure exceeds the natural osmotic pressure, the flow direction of water molecules reverses, passing through the reverse osmosis membrane from the concentrated solution side and becoming purified water on the dilute solution side. This process effectively removes over 98% of ions, organic matter, and theoretically 100% of microorganisms from the raw water, achieving efficient purification.

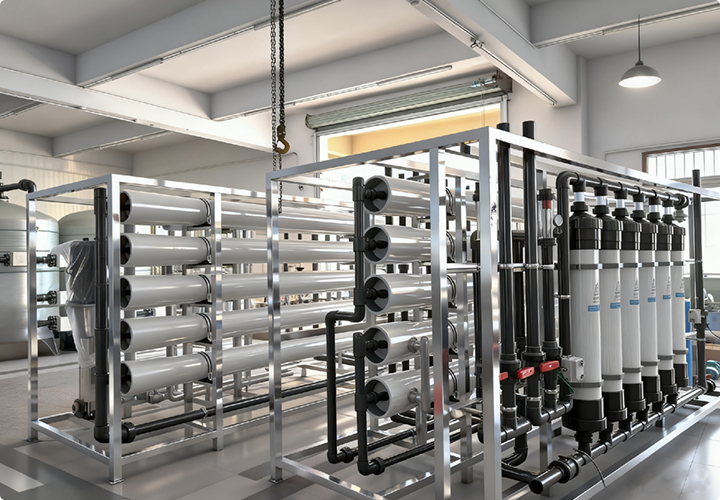

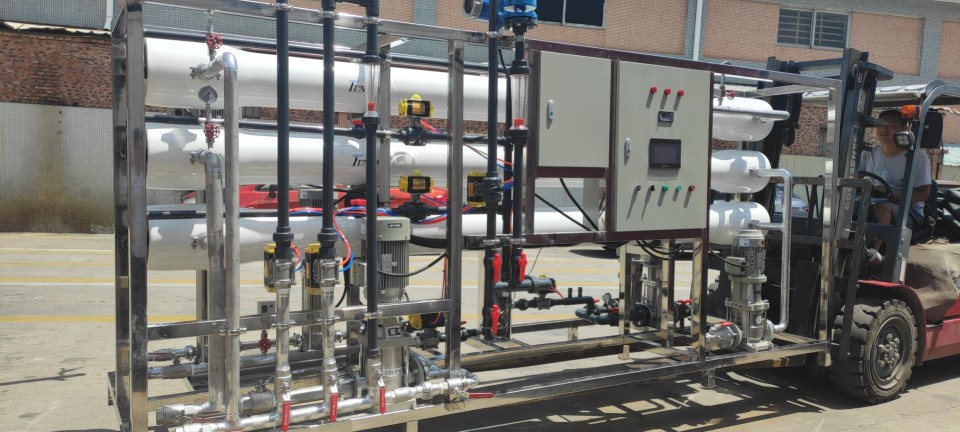

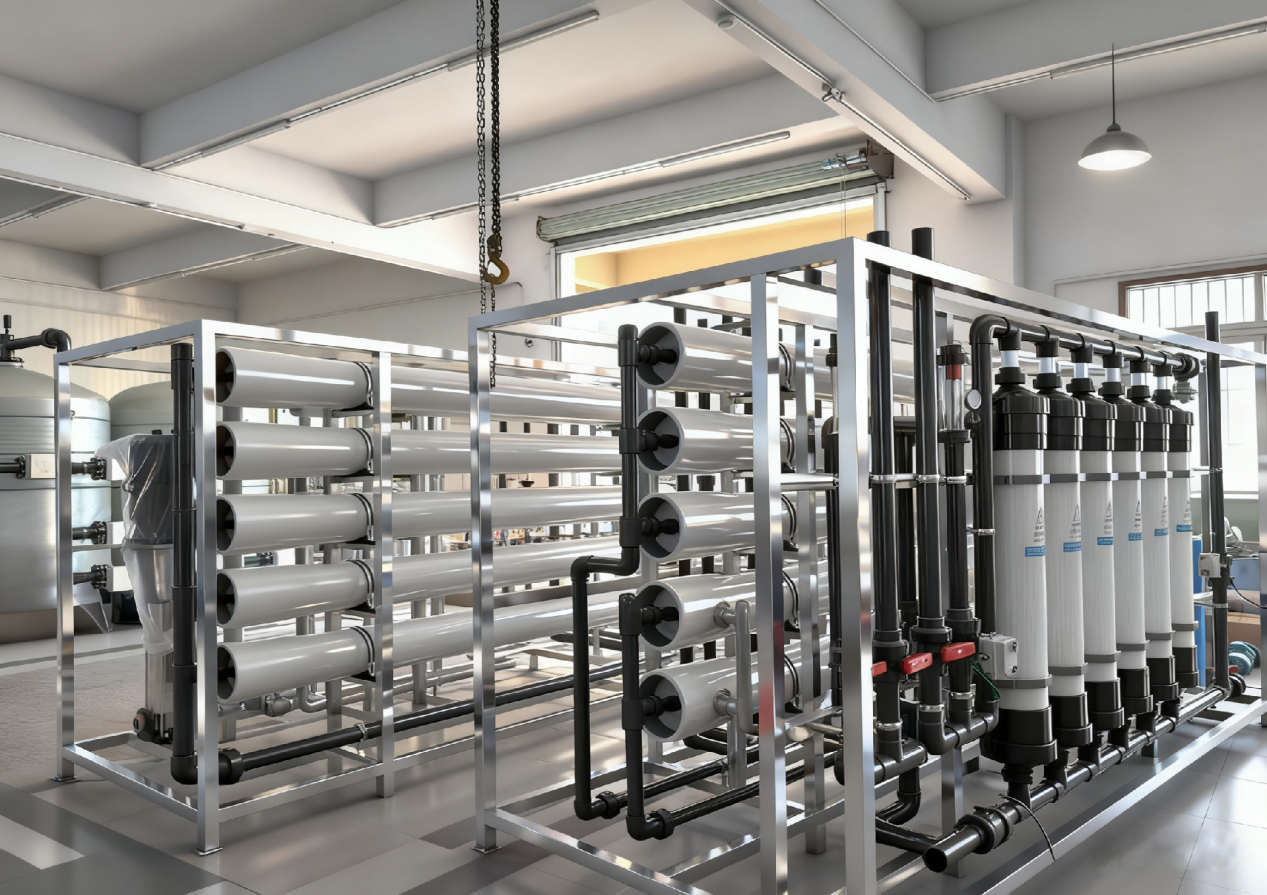

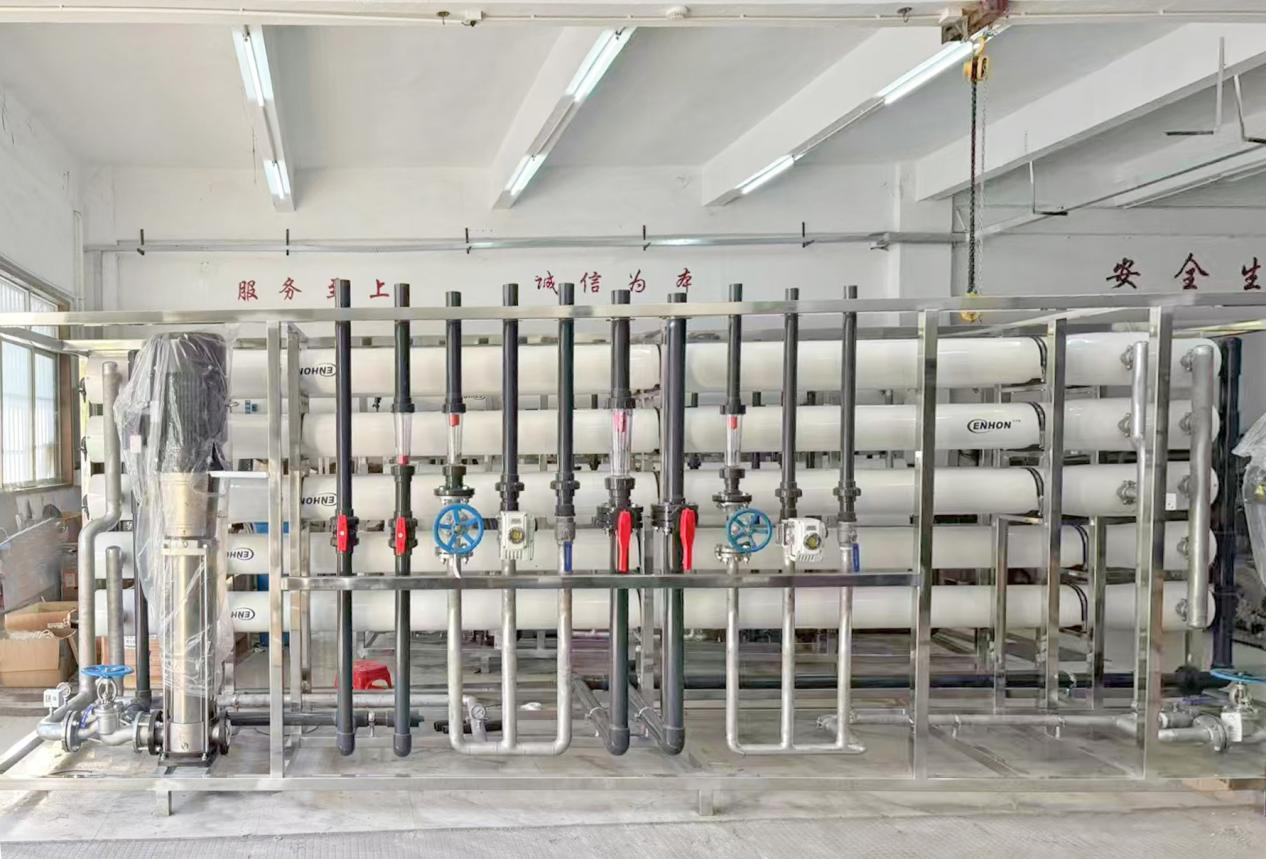

To achieve the reverse osmosis process, a complete set of reverse osmosis water treatment equipment is typically required, which mainly consists of three major parts: the raw water pretreatment system, the reverse osmosis purification system, and the ultrapure post-treatment system. The purpose of the pretreatment system is to ensure that the raw water meets the inlet requirements of the reverse osmosis membrane separation components and to protect the stable operation of the reverse osmosis purification system. Its core components include polypropylene fiber filters and activated carbon filters, which are used to remove mechanical particulate impurities, residual chlorine, some organic compounds, colloids, and other pollutants from the raw water.

The reverse osmosis purification system is the core of the entire equipment. It utilizes the high separation performance of reverse osmosis membranes to remove most impurities from raw water in one go, producing high-purity water. The ultra-purification post-treatment system further removes residual trace ions and organics from the reverse osmosis purified water through integrated technology, to meet the high water quality requirements of different application fields.

In the reverse osmosis process, pretreatment is an indispensable step. For raw water with high hardness, a softening resin filter is also required to prevent scaling and blockage on the surface of the subsequent RO membrane, thereby enhancing the water recovery rate. Furthermore, the setup of the raw water tank and raw water pump aims to ensure stable flow and pressure of the system's water supply, preventing equipment damage or affecting the normal operation of the system due to insufficient flow or unstable pressure.

Overall, reverse osmosis technology, characterized by its high efficiency, cost-effectiveness, and environmental friendliness, has found widespread applications in various fields such as industrial pure water production, electronic ultrapure water preparation, purified drinking water production, and boiler feedwater supply. Through precise membrane separation technology, it achieves deep purification and refinement of water, providing a stable and reliable water source guarantee for various application scenarios.

While deeply exploring reverse osmosis technology, we cannot help but be full of expectations for its application prospects. As an advanced membrane separation technology, reverse osmosis has demonstrated remarkable purification capabilities in the fields of industrial pure water preparation, electronic ultrapure water production, and drinking purified water. However, this is just the tip of the iceberg. With the continuous development of technology, reverse osmosis technology is expected to shine brilliantly in more fields.

In the field of environmental protection, reverse osmosis technology holds promise for providing new solutions for wastewater treatment. Through reverse osmosis treatment, harmful substances in wastewater can be effectively removed, enabling the reuse of wastewater and reducing pressure on the environment. Furthermore, reverse osmosis technology can also be applied in the field of seawater desalination, providing sustainable freshwater resources for water-scarce regions.

In the medical field, reverse osmosis technology also holds broad application prospects. Pure water prepared through reverse osmosis technology can be used for cleaning medical equipment and disinfecting surgical instruments, ensuring the safety and hygiene of the medical process. Furthermore, reverse osmosis technology can also be applied in the preparation and purification of drugs, enhancing the quality and purity of medications.

In addition to the aforementioned fields, reverse osmosis technology also holds potential application value in agriculture, food processing, and energy. In the agricultural sector, reverse osmosis technology can be utilized for the purification and treatment of irrigation water, thereby enhancing crop yield and quality. In the food processing industry, reverse osmosis technology can be applied to clarify and concentrate products such as juices and beverages, improving the taste and nutritional value of these products. In the energy sector, reverse osmosis technology can be employed to produce water for high-efficiency fuel cells, thereby promoting the development of clean energy.

In summary, reverse osmosis technology, as an efficient, energy-saving, and environmentally friendly water treatment technology, holds broad application prospects. With continuous technological progress and innovation, we have reason to believe that reverse osmosis technology will play an even more important role in the future, creating a better living environment for humanity.
