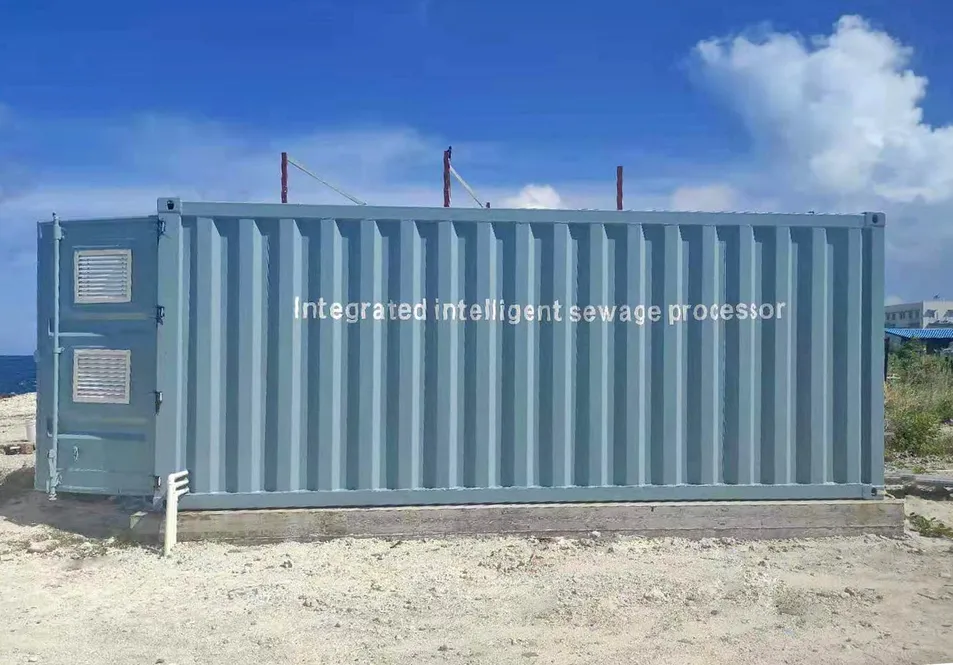

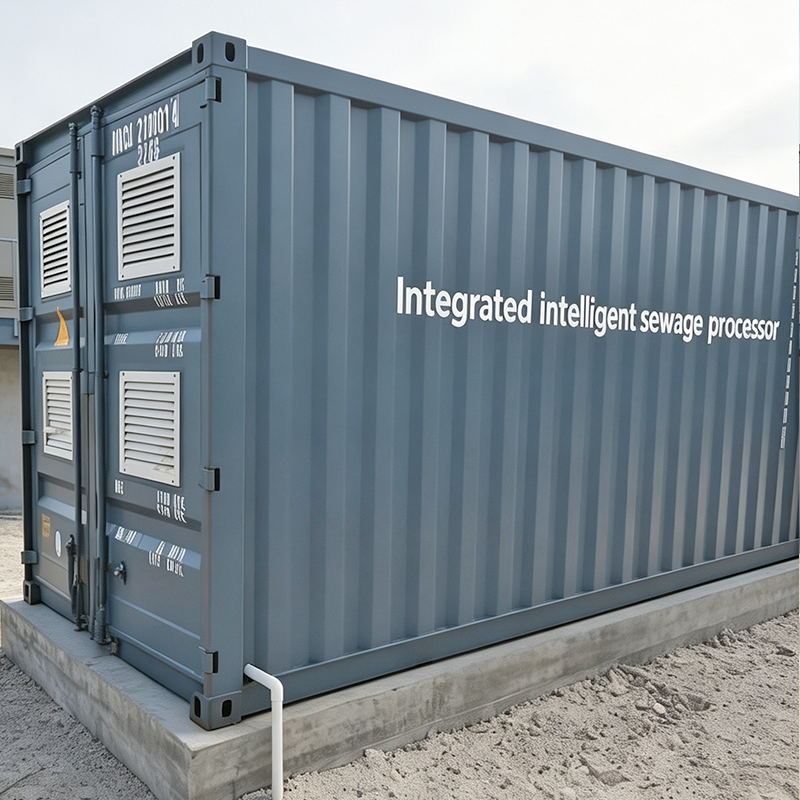

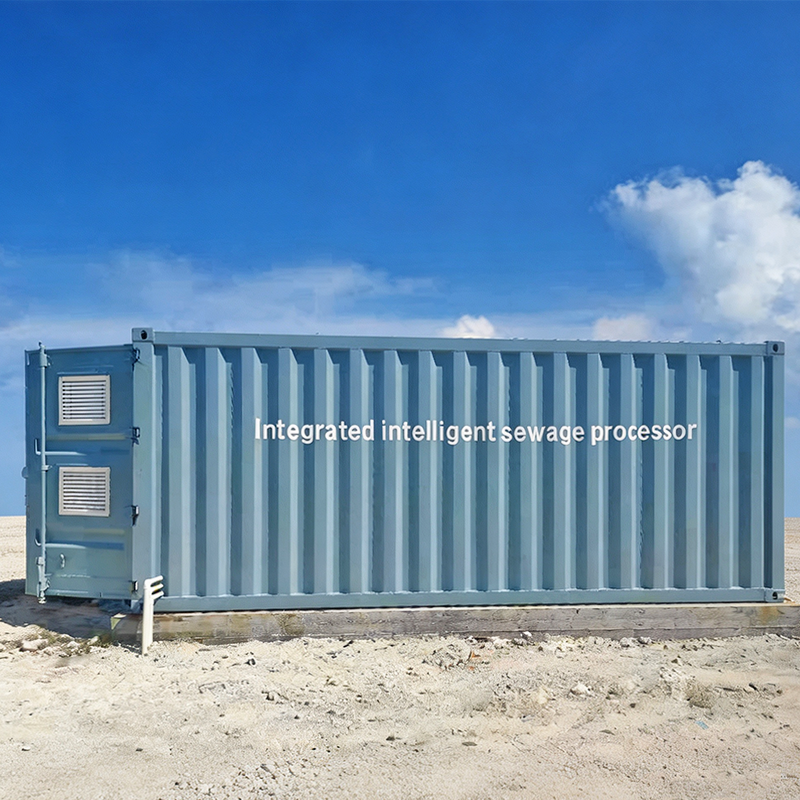

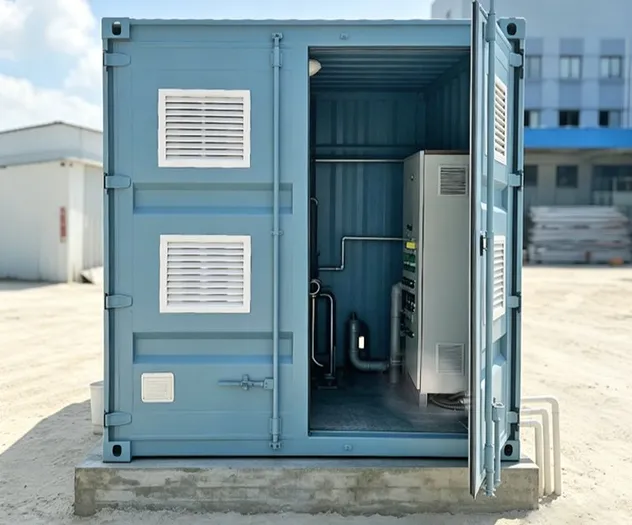

The entire sewage treatment system is fully integrated inside standard shipping containers, with two standardized cabinet specifications: 20GP General Container and 40HQ High Cube Container. Each container has a rated maximum treatment capacity. When the designed water volume of the project exceeds the capacity of a single cabinet, multiple units shall be arranged in parallel in a modular layout, with each cabinet operating independently and its automatic control system isolated from others.

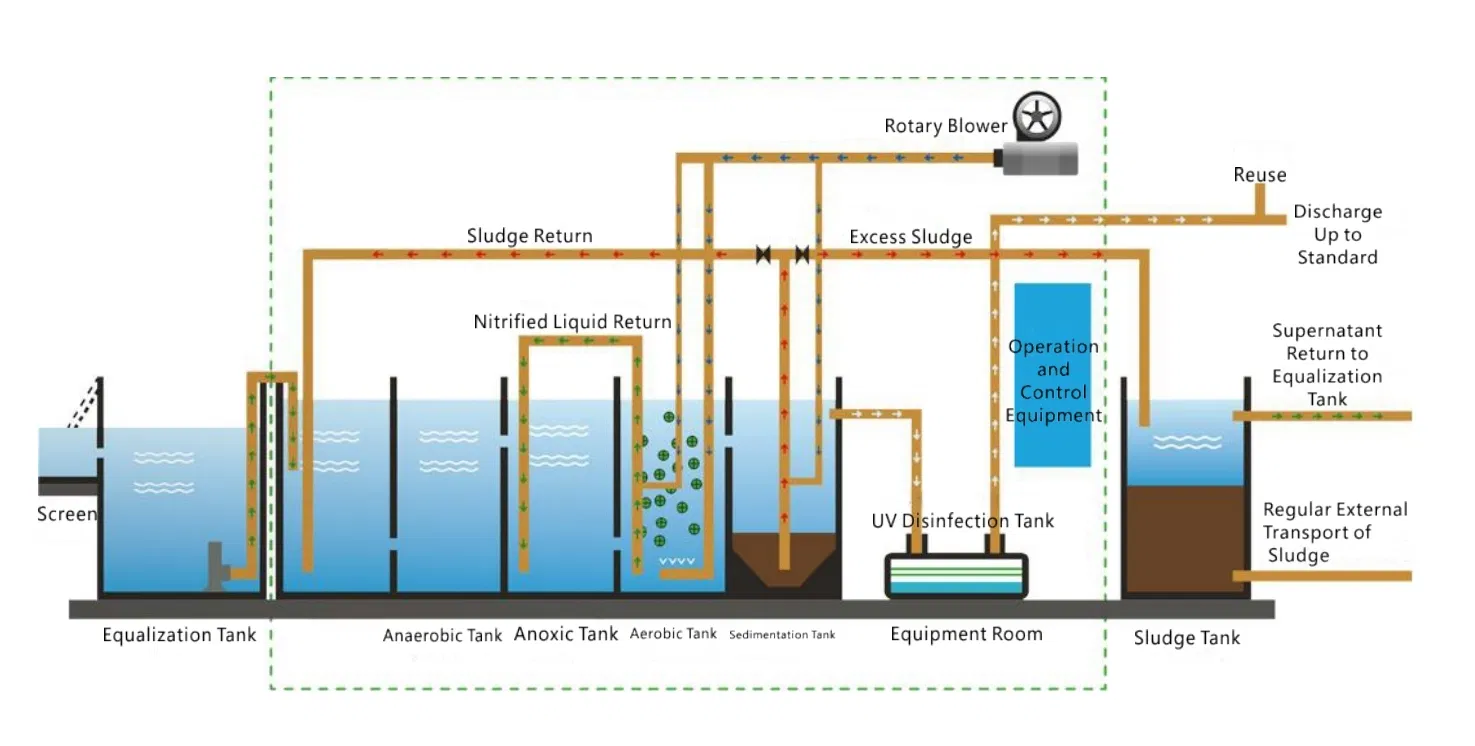

This equipment adopts a composite process combining Anaerobic-Anoxic-Oxic (AAO) biochemical nitrogen and phosphorus removal technology with PVDF hollow fiber Membrane Bioreactor (MBR) deep filtration. It can simultaneously remove COD, BOD5, ammonia nitrogen, total phosphorus and suspended solids from water, eliminating the traditional civil secondary sedimentation tank. It features high mud-water separation efficiency and stable effluent with low excess sludge yield. The treated effluent can meet multi-level water control requirements for direct discharge, reclaimed water reuse, green irrigation and toilet flushing in most countries worldwide.
Applicable scenarios include domestic wastewater from residential communities, villages, hotels, tourist facilities, schools, medical and senior care facilities; wastewater generated by oil & gas, mining and construction work camps, industrial parks, commercial complexes, catering, gyms, airports, ports and logistics parks; domestic wastewater from light industry factories, warehouses, new energy plants and livestock farms. It also covers wastewater for offshore islands, offshore platforms, border outposts and remote base stations under special working conditions such as high salinity, variable flow, intermittent discharge and low temperature. Treated effluent can be reused for irrigation, road cleaning, toilet flushing and cooling water replenishment in water-scarce regions.
Most modules are pre-assembled and integrated at our factory. Water and electricity joint commissioning can be carried out prior to shipment. The full system generally consists of:

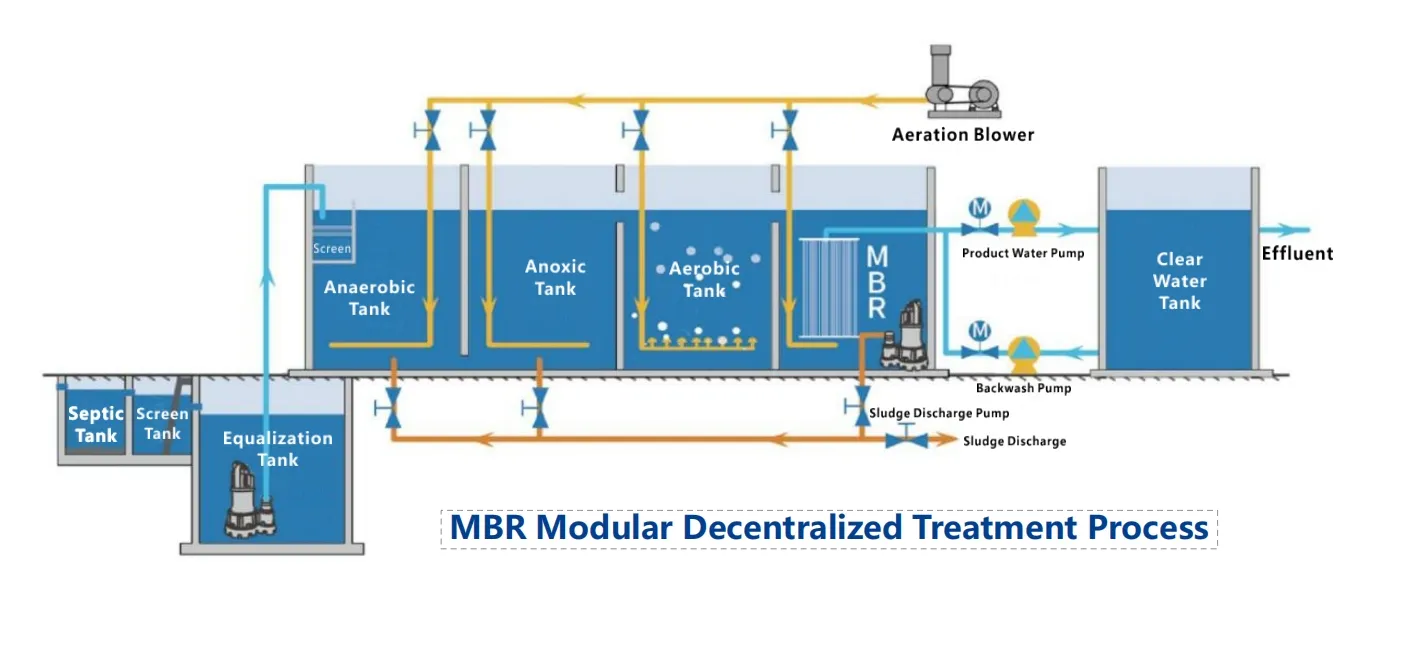

Pre-treatment buffer zone, anaerobic zone, anoxic zone, aerobic aeration zone and MBR membrane filtration zone

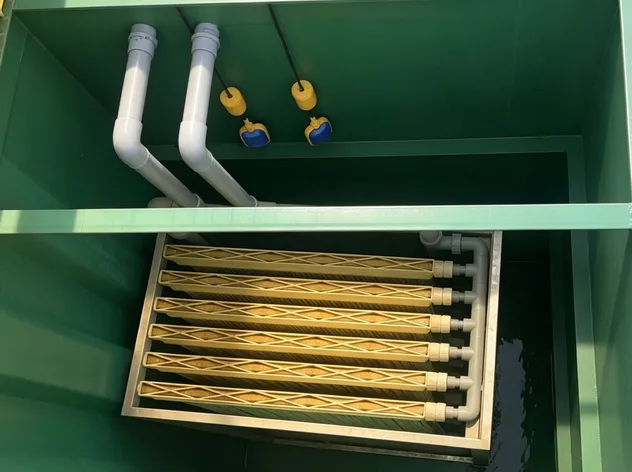

MBR membrane modules, water production system and online chemical cleaning circulation piping for membranes

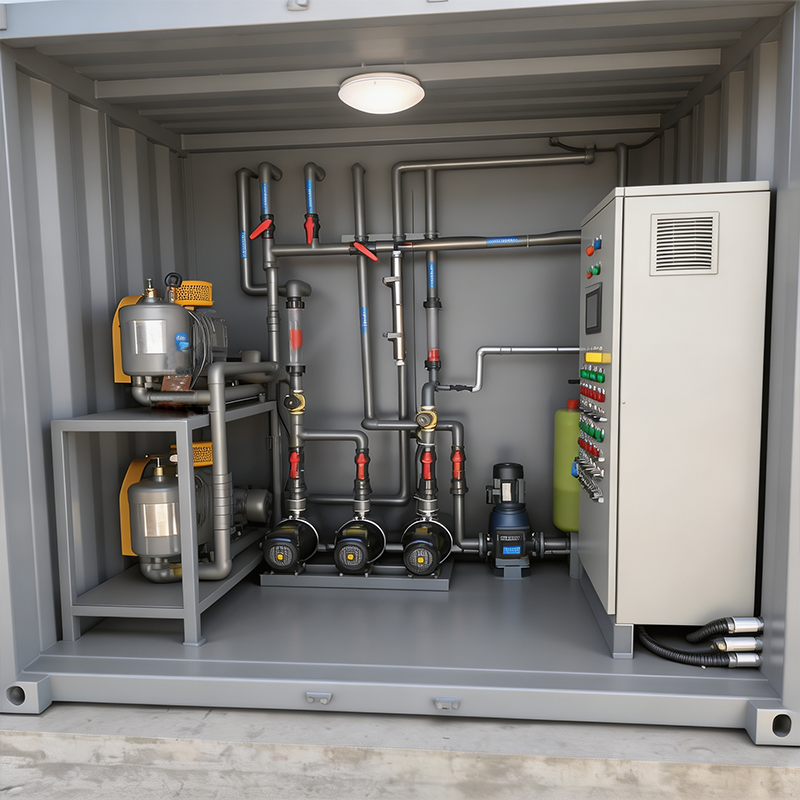

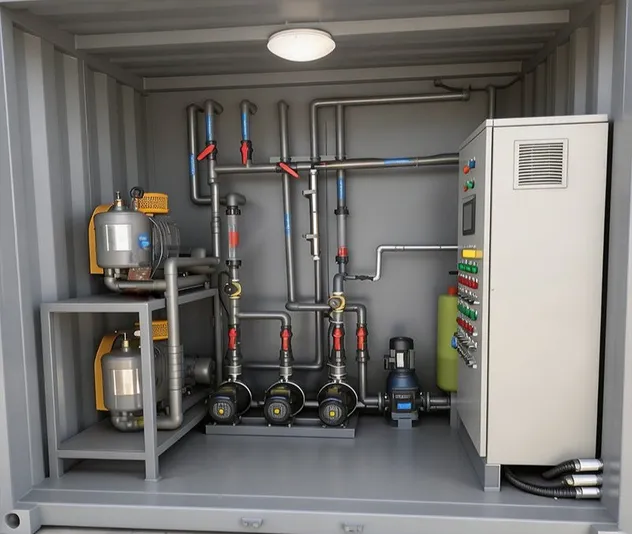

Auxiliary pumping equipment: sludge recirculation pump, nitrification recirculation pump, water production pump and aeration blower
Aeration system, 304 stainless steel pipelines, valves, flow meters and level transmitters

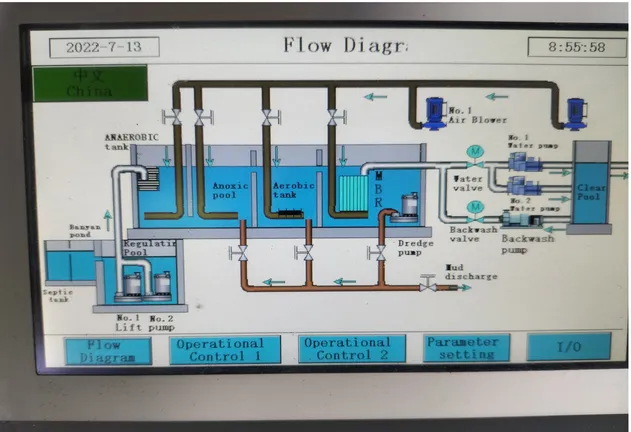

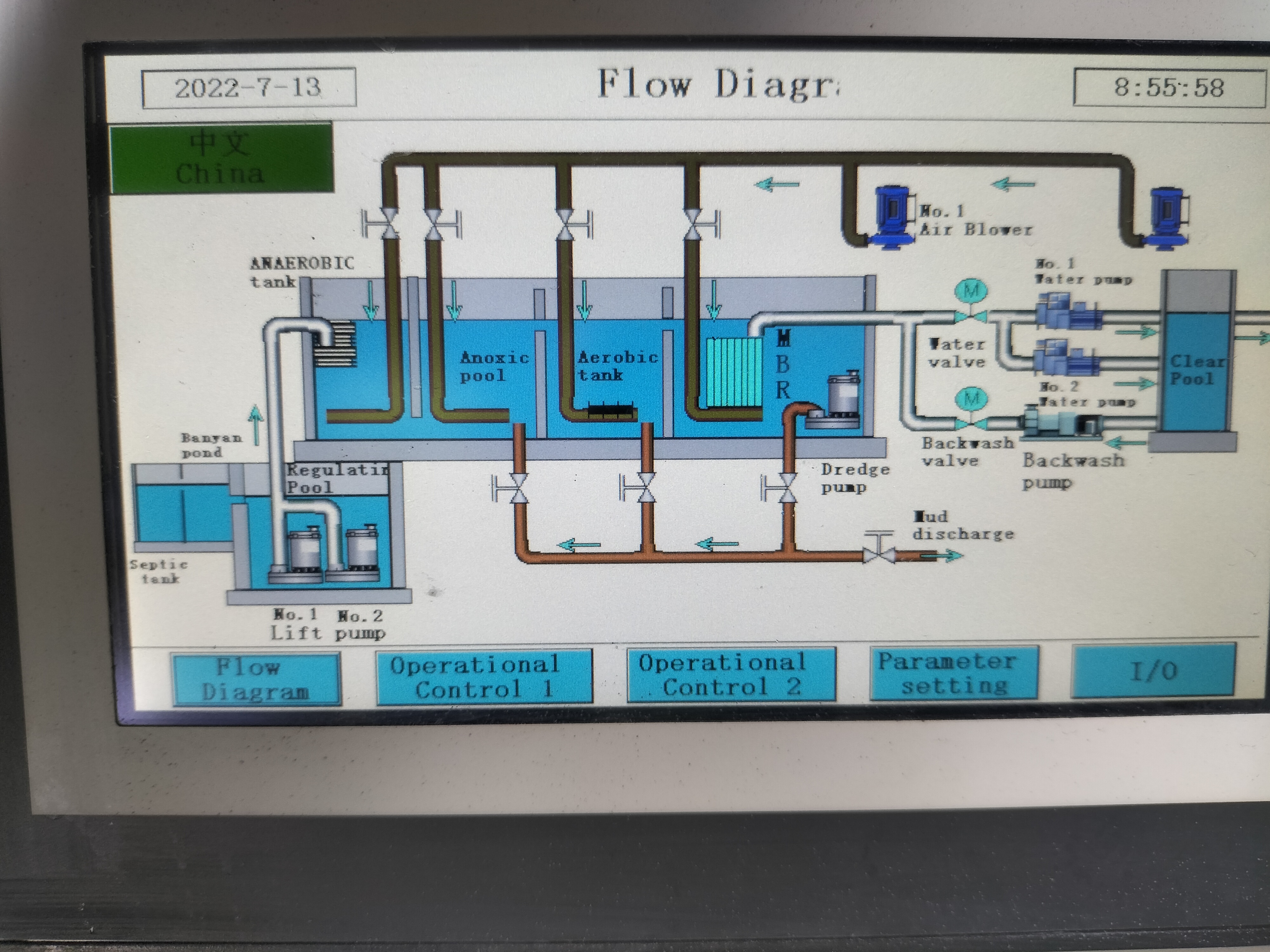

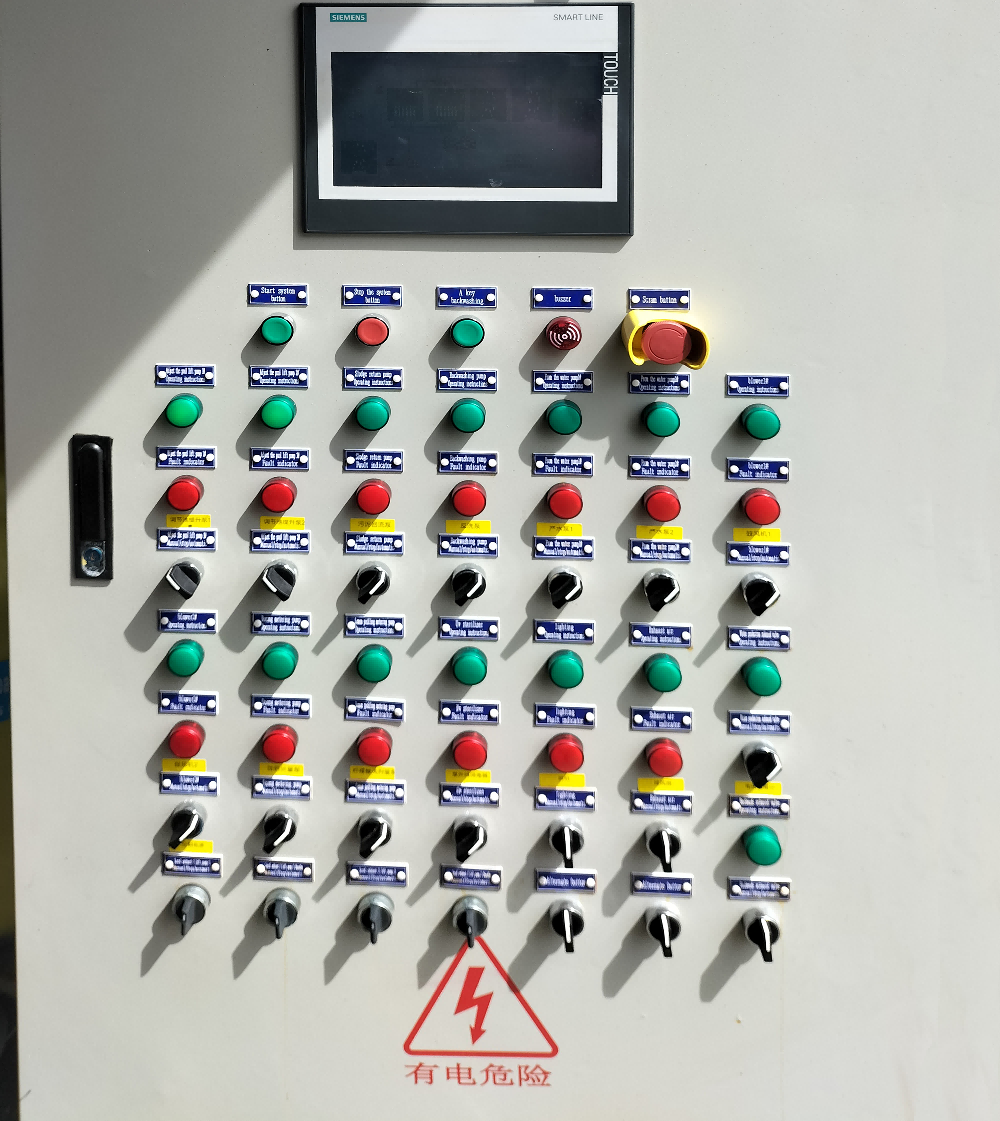

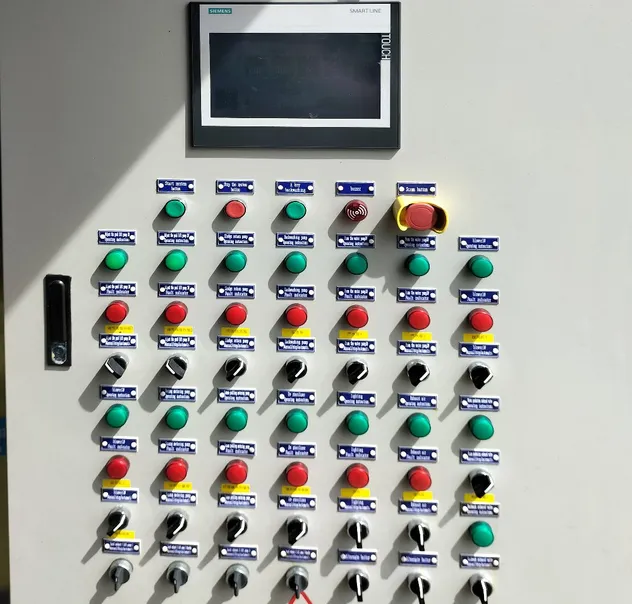

Separate electrical control cabin, PLC automatic control system, Chinese & English touch HMI

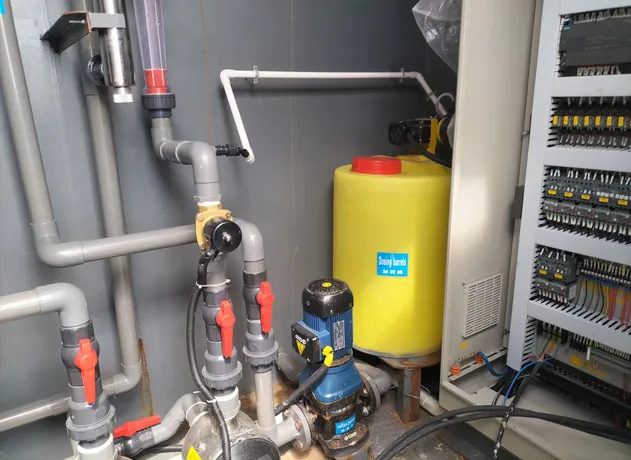

Integrated chemical dosing unit

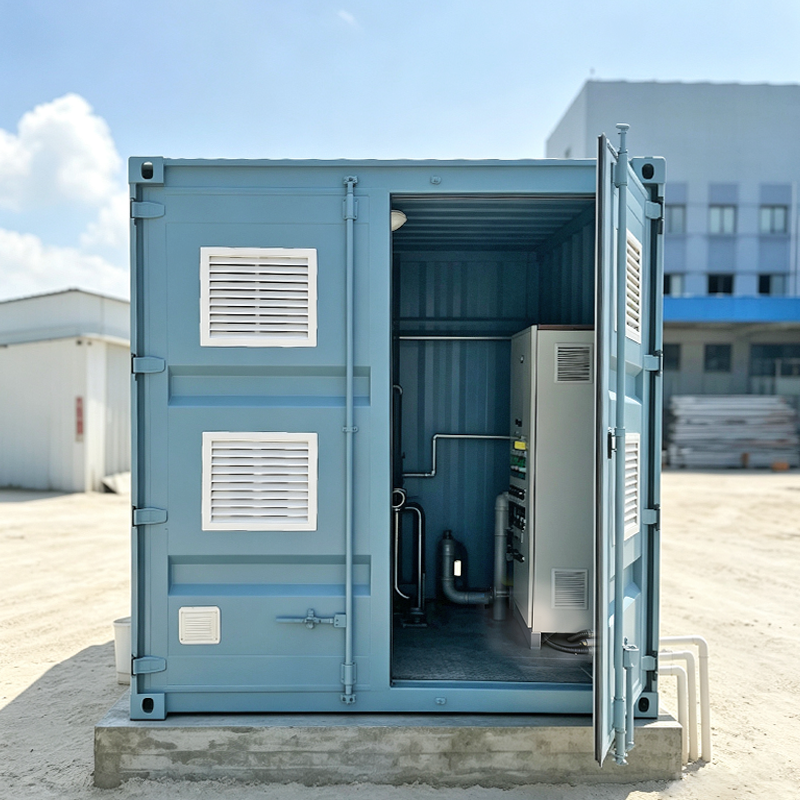

Container access doors, internal operation platform, anti-corrosion support frame, forced ventilation & cooling system
Interior lighting, overflow pipeline and sewage discharge accessories
To meet export requirements, the equipment is manufactured using standardized and modular production methods. It can be flexibly customized to accommodate the voltage, water quality standards, and installation environments of the client's region. The system supports containerized shipping, offers easy installation without the need for complex civil engineering work, and features a short on-site commissioning period (typically 3–7 days to complete commissioning and begin operation). Additionally, we provide comprehensive technical support and after-sales service, including multilingual operation manuals. Our professional engineers can provide remote guidance for installation and maintenance, completely eliminating any concerns for our international clients.
MBR Membrane Bioreactor Wastewater Treatment System
Integrated wastewater treatment system
Rural and Decentralized Domestic Sewage: Suitable for rural villages, agritourism facilities, and bed-and-breakfasts—where centralized treatment facilities are absent—to treat domestic sewage and improve the rural living environment. In remote areas, solar power can be integrated to enable unmanned operation.
Urban and Civilian Centralized Settings: Covers residential communities, hotels, schools, hospitals, and similar facilities to treat centralized domestic sewage. For hospital settings, a dedicated disinfection module can be integrated; treated sewage from residential communities can be reused as reclaimed water.
Small and Medium-Sized Industrial Wastewater: Suitable for industries such as food processing, light industry and textiles, catering, and small-scale chemical manufacturing. It treats low-concentration production wastewater; high-concentration wastewater requires pretreatment.
Environmental Emergency and Temporary Scenarios: Includes emergency treatment following natural disasters, construction sites, temporary treatment during sewage facility maintenance, and wastewater disposal for large-scale temporary events. It can be rapidly deployed and activated.
Special Scenarios: Suitable for ecologically sensitive areas such as tourist attractions and nature reserves, as well as water-scarce regions like islands and remote mining areas. It can also treat wastewater from small-scale livestock and poultry farming to achieve resource recovery.
Container Specification: 20GP for 5~50m³/d, 40HQ for 60~150m³/d; Multiple 40HQ units are used in parallel for capacity over 150m³/d; | ||||
Daily Capacity(m³/d) | Container Quantity | Total Installed Power(kW) | Rated Operating Power(kW) | Min. Site Footprint(L×W,m) |
5 | 1×20GP | 4.63 | 2.78 | 7.0×3.0 |
10 | 1×20GP | 5.00 | 2.78 | 7.0×3.0 |
20 | 1×20GP | 7.49 | 4.00 | 7.0×3.0 |
30 | 1×20GP | 9.97 | 5.22 | 7.0×3.0 |
40 | 1×20GP | 9.97 | 5.22 | 7.0×3.0 |
50 | 1×20GP | 11.47 | 5.72 | 7.0×3.0 |
60 | 1×40HQ | 11.84 | 5.72 | 13.0×3.5 |
70 | 1×40HQ | 17.00 | 5.72 | 13.0×3.5 |
80 | 1×40HQ | 17.00 | 5.72 | 13.0×3.5 |
90 | 1×40HQ | 17.00 | 5.72 | 13.0×3.5 |
100 | 1×40HQ | 21.69 | 10.67 | 13.0×3.5 |
110 | 1×40HQ | 23.67 | 11.67 | 13.0×3.5 |
120 | 1×40HQ | 25.65 | 12.67 | 13.0×3.5 |
130 | 1×40HQ | 27.63 | 13.67 | 13.0×3.5 |
140 | 1×40HQ | 29.61 | 14.67 | 13.0×3.5 |
150 | 1×40HQ | 31.59 | 15.67 | 13.0×3.5 |
160 | 2×40HQ | 43.38 | 21.34 | 25.0×3.5 |
170 | 2×40HQ | 45.36 | 22.34 | 25.0×3.5 |
180 | 2×40HQ | 47.34 | 23.34 | 25.0×3.5 |
190 | 2×40HQ | 49.32 | 24.34 | 25.0×3.5 |
200 | 2×40HQ | 41.44 | 20.57 | 25.0×3.5 |
210 | 2×40HQ | 43.42 | 21.57 | 25.0×3.5 |
220 | 2×40HQ | 45.40 | 22.57 | 25.0×3.5 |
230 | 2×40HQ | 47.38 | 23.57 | 25.0×3.5 |
240 | 2×40HQ | 49.36 | 24.57 | 25.0×3.5 |
250 | 2×40HQ | 51.34 | 25.57 | 25.0×3.5 |
260 | 2×40HQ | 53.32 | 26.57 | 25.0×3.5 |
270 | 2×40HQ | 55.30 | 27.57 | 25.0×3.5 |
280 | 2×40HQ | 57.28 | 28.57 | 25.0×3.5 |
290 | 2×40HQ | 59.26 | 29.57 | 25.0×3.5 |
300 | 3×40HQ | 62.34 | 30.27 | 37.0×3.5 |
400 | 3×40HQ | 64.74 | 31.87 | 37.0×3.5 |
500 | 4×40HQ | 88.64 | 59.14 | 49.0×3.5 |
We support custom sizes for non-container type | ||||
Guangdong Yuezhong Environmental Technology Co., Ltd. is a high-tech enterprise dedicated to environmental protection and water treatment solutions. It integrates R&D, production, sales, installation, and commissioning services, and is committed to safeguarding green mountains and clear waters, providing stable and efficient environmental protection water treatment products and services to global customers.
The company's water treatment equipment is widely applied in various fields, including municipal engineering, residential areas, schools, hospitals, hotels, as well as numerous industries such as petrochemicals, machinery manufacturing, electronics and semiconductors, papermaking, slaughterhouses, leather, textiles, and dyeing. It can meet the wastewater treatment and pure water purification needs of different scenarios.

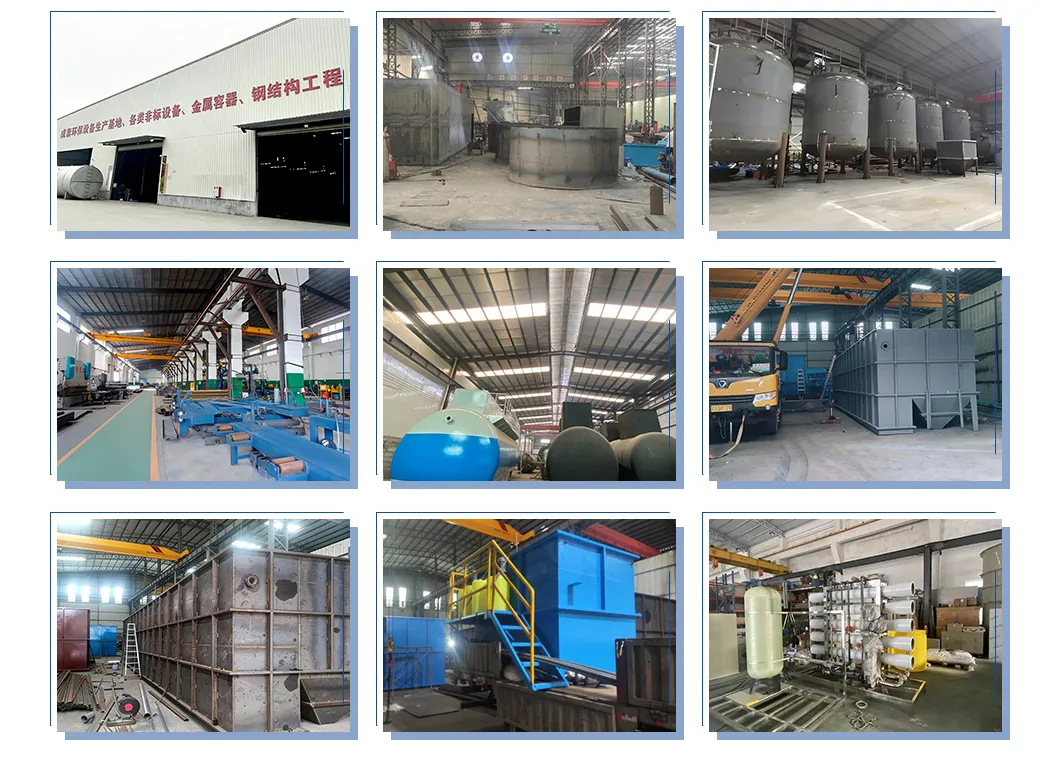

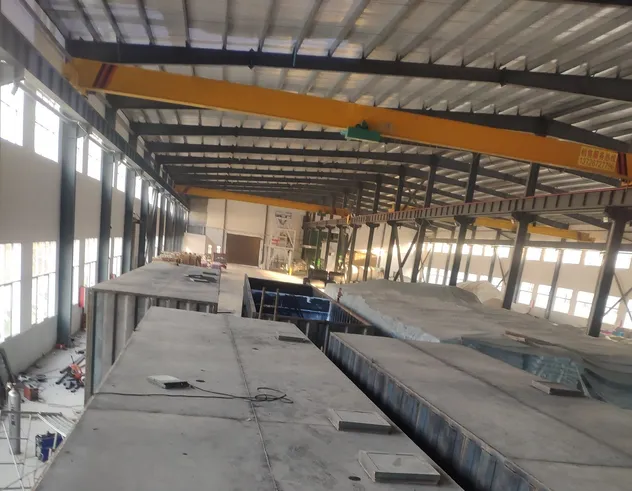

The company has equipped with large-scale modern production plants and possesses large-scale production capacity. The annual production capacity can reach: 300 sets of wastewater treatment equipment and 200 sets of pure water purification equipment. Relying on a complete R&D system and professional technical and management teams, Yuezhong Environment has a strong comprehensive strength and consistently ranks at the forefront of the industry with its leading technology, mature solutions, and rich project experience. We always strive to create outstanding quality with exquisite technology, win customers' trust with professional services, and continuously contribute to the global environmental protection cause.
